- Dimensions:
D=25mm (0.98")
d1=5.5mm (0.22") (Sized for M5 screw)
d2=9mm (0.35") (Straight counterbored hole)
h=8mm (0.31") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni + Epoxy
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.77 oz. (21.8 g)
- Pull Force: 30.9 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe

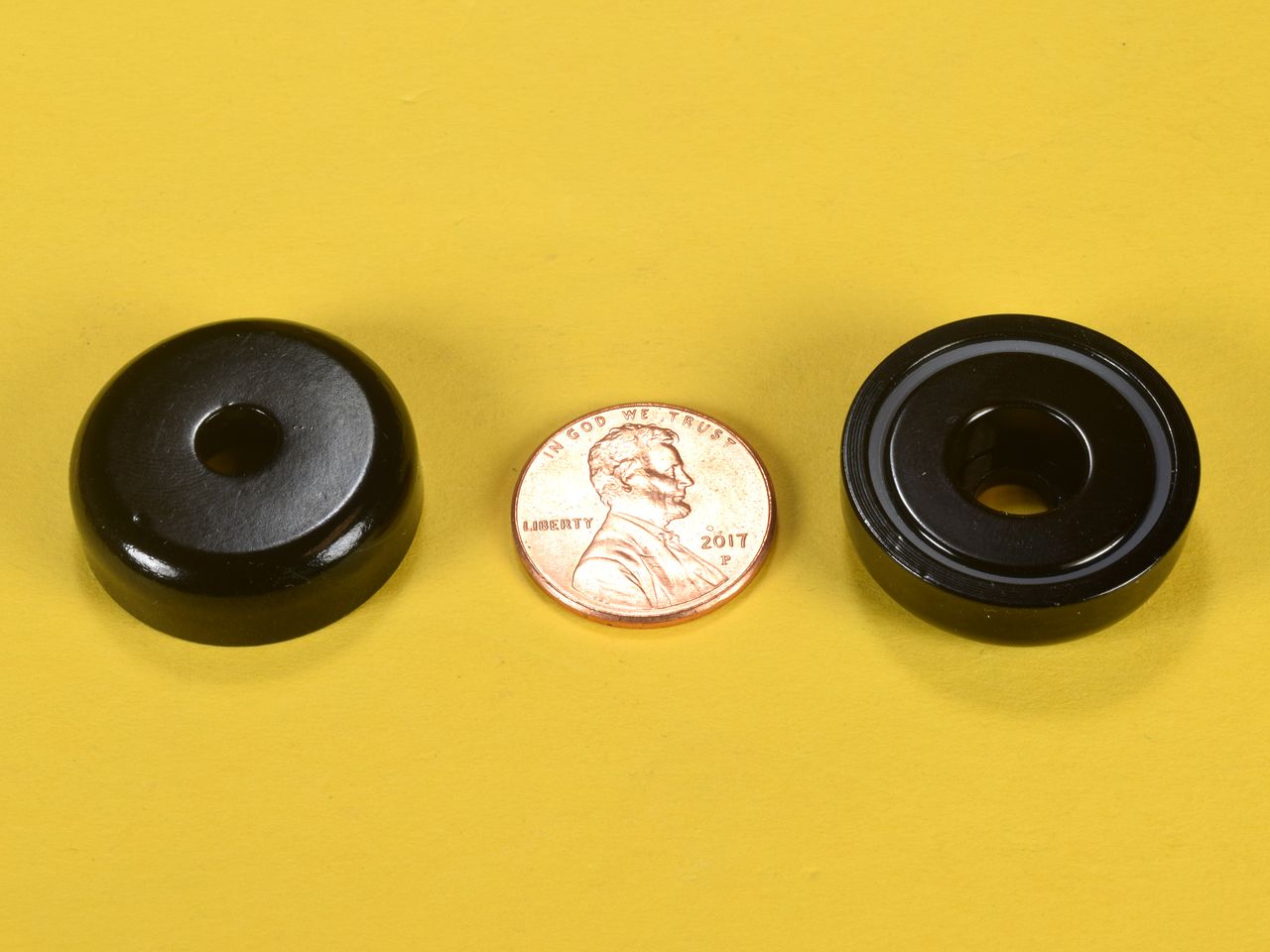

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project. This is like our MM-B-25, but with an epoxy coating.
 | Click this link for a depiction of the magnetic field. |
 | View B-H curves for this magnet. |
 | Click this link to download a PDF Specification Sheet. |
 | Click this link to download a PDF drawing of this product. |
 | Click this link to download a Certificate of Compliance for this product. |
 | Click this link to download a RoHS Statement of Compliance for this product. |
 | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
 | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
 | Click this link to download a Certificate of Origin for this product. |
 | Click this link for a REACH compliance statement. |
 | Click this link to download a .STEP file (3D model). |
 | Click this link to download an .IGS file (3D model). |
