MMS-A-XC - Neodymium Countersunk Mounting Magnet

mms-a-xc-neodymium-countersunk-mounting-magnet--thumbnail-2

$13.32

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$13.32	1
$13.02	2	2%
$12.73	3-4	4%
$12.43	5-9	7%
$12.14	10-24	9%
$11.84	25-49	11%
$11.55	50-99	13%
$11.25	100-249	16%
$10.96	250-499	18%
$10.66	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

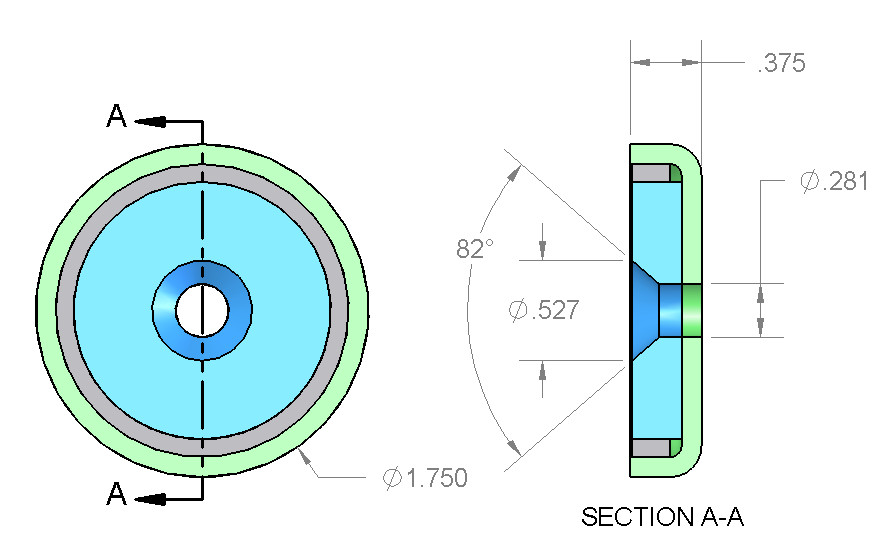

Dimensions:
    Diameter= 1 3/4" (1.75")
    Hole Size= 1/4" Screw
    Height= 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 3.46 oz. (97.99 g)
Pull Force: 122.5 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

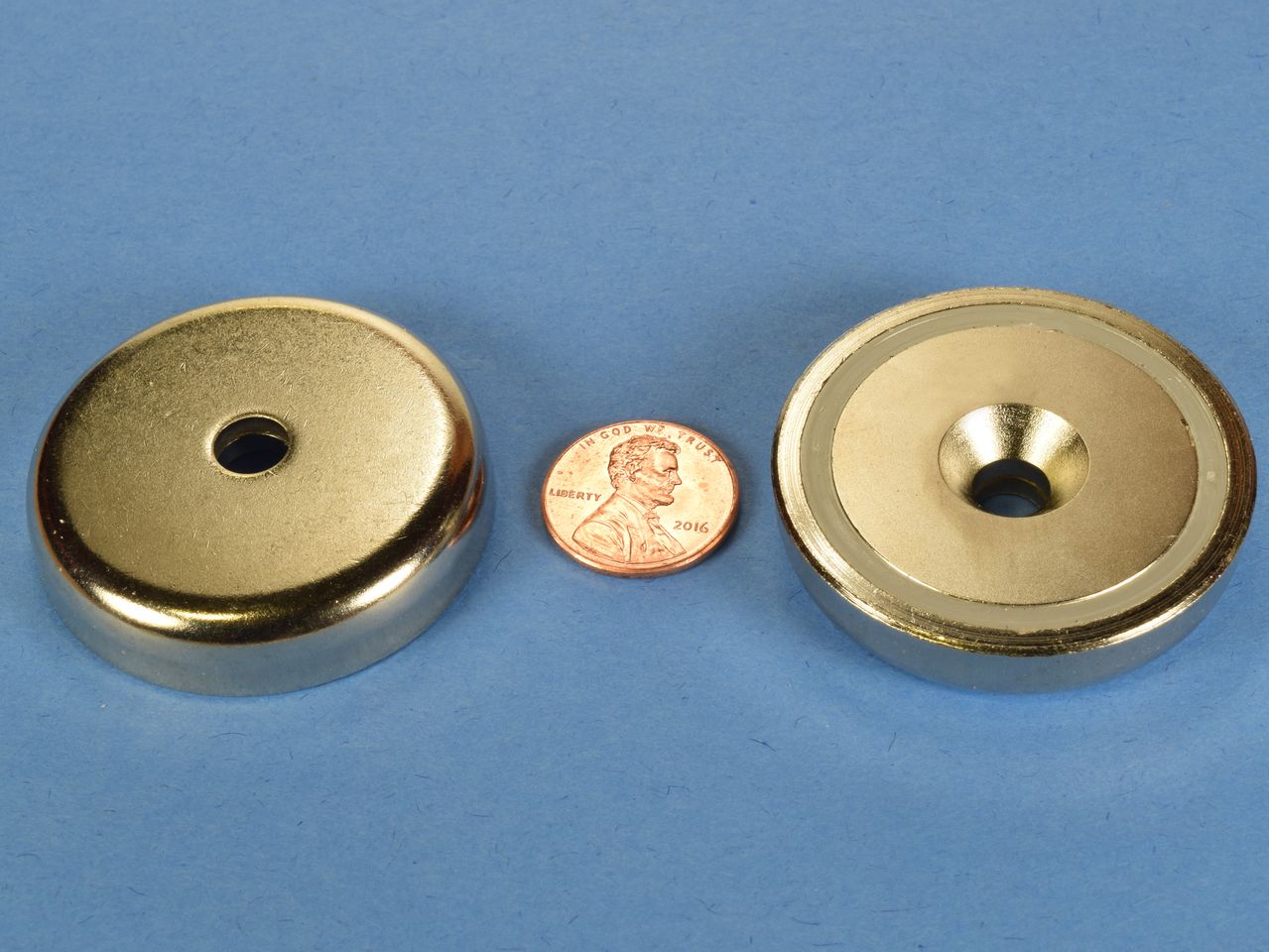

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
