MMS-B-X4 - Neodymium Counterbored Mounting Magnet

mms-b-x4-neodymium-counterbored-mounting-magnet--thumbnail-2

$6.08

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$6.08	1
$5.94	2-4	2%
$5.81	5-9	4%
$5.67	10-24	7%
$5.54	25-49	9%
$5.40	50-99	11%
$5.27	100-249	13%
$5.13	250-499	16%
$5.00	500-999	18%
$4.86	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

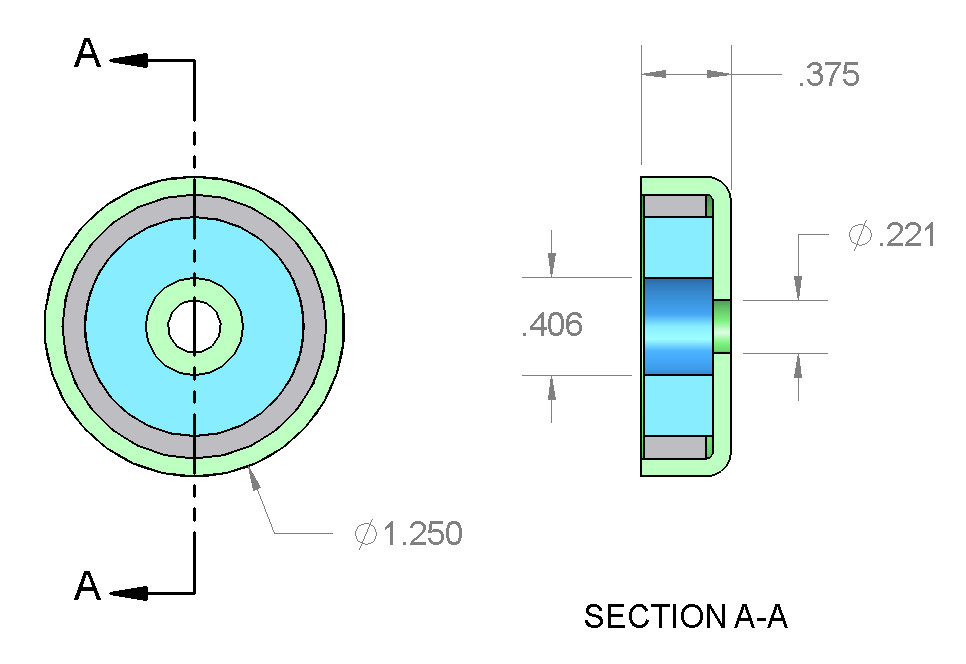

Dimensions:
    Diameter = 1 1/4" (1.25")
    Hole Size = #10 Screw
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.513 oz. (42.89 g)
Pull Force: 52.42 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

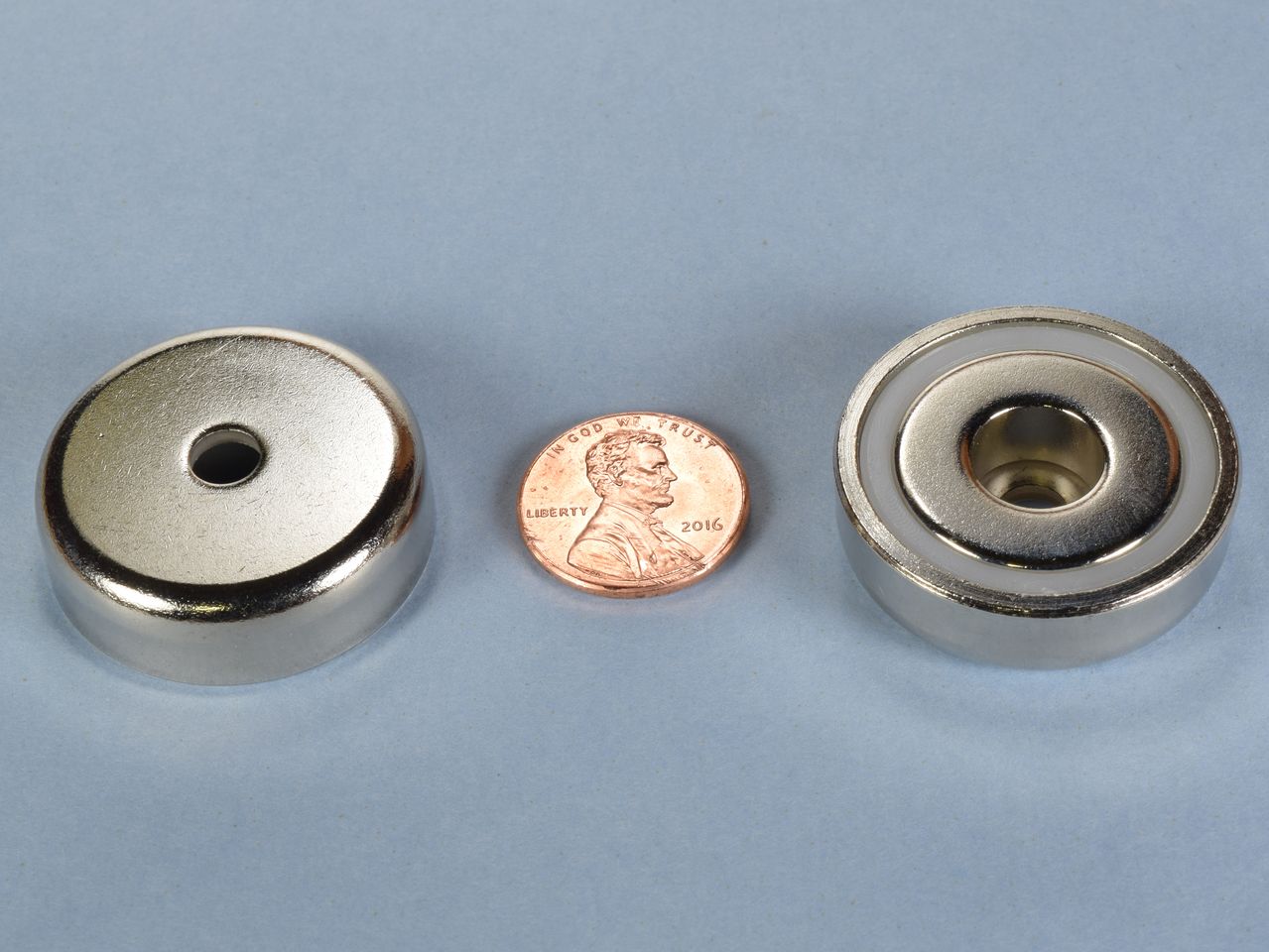

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
