MMS-D-Z0 - Neodymium Female Stud Mounting Magnet

• Dimensions:
      Diameter = 3" (3.00")
      Threaded Female Stud = 3/8"-16 UNC 2B
      Height = 3/4" (0.75")
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 21.51 oz. (609.8 g)
• Pull Force: 352.4 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

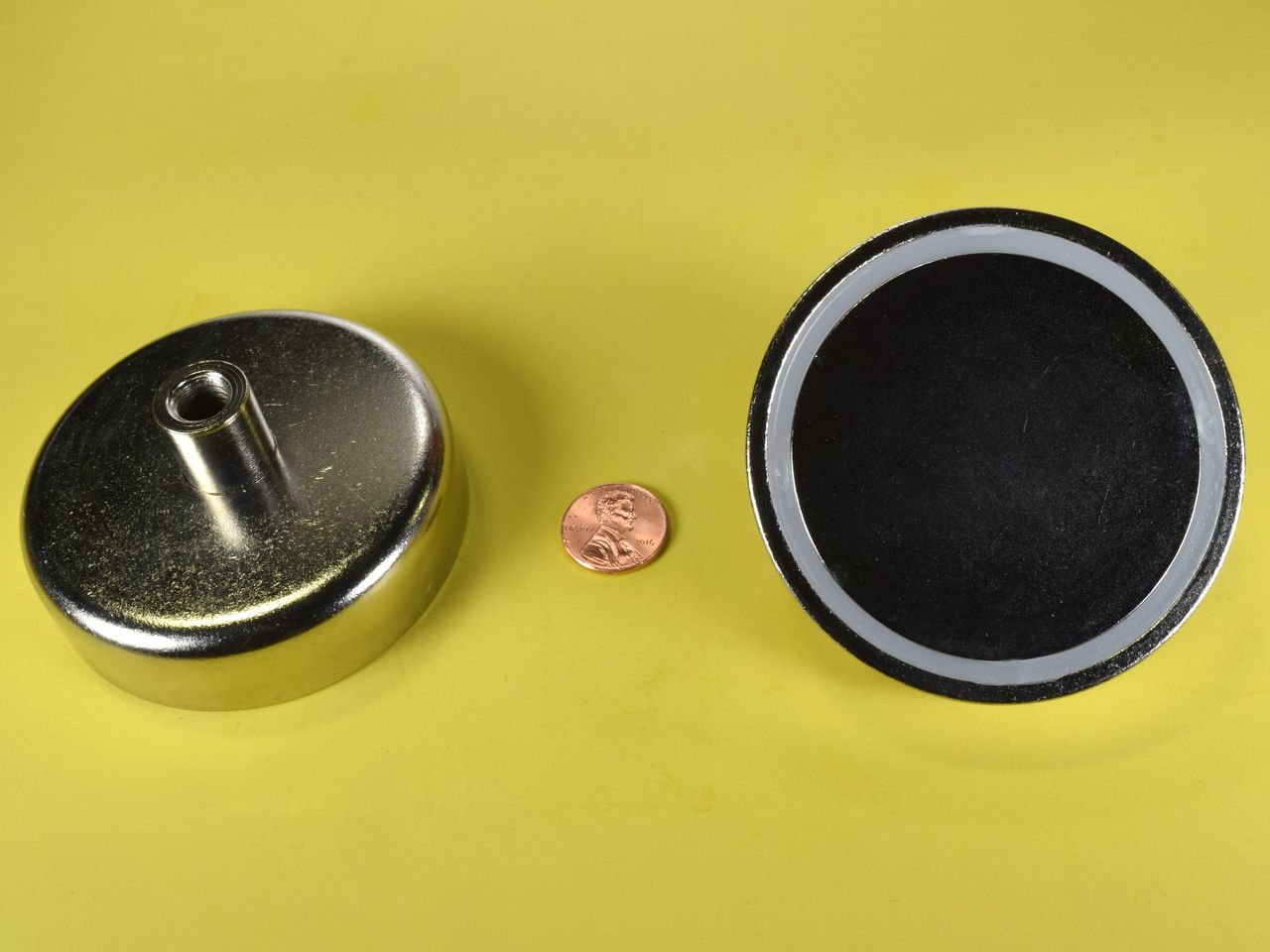

The MMS-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.
