- Dimensions: 1/4 od x 1/8" thick with countersunk hole for #2 screw
- Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0203 oz. (0.575 g)
- Pull Force, Case 1: 1.43 lbs
- Pull Force, Case 2: 2.05 lbs
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe

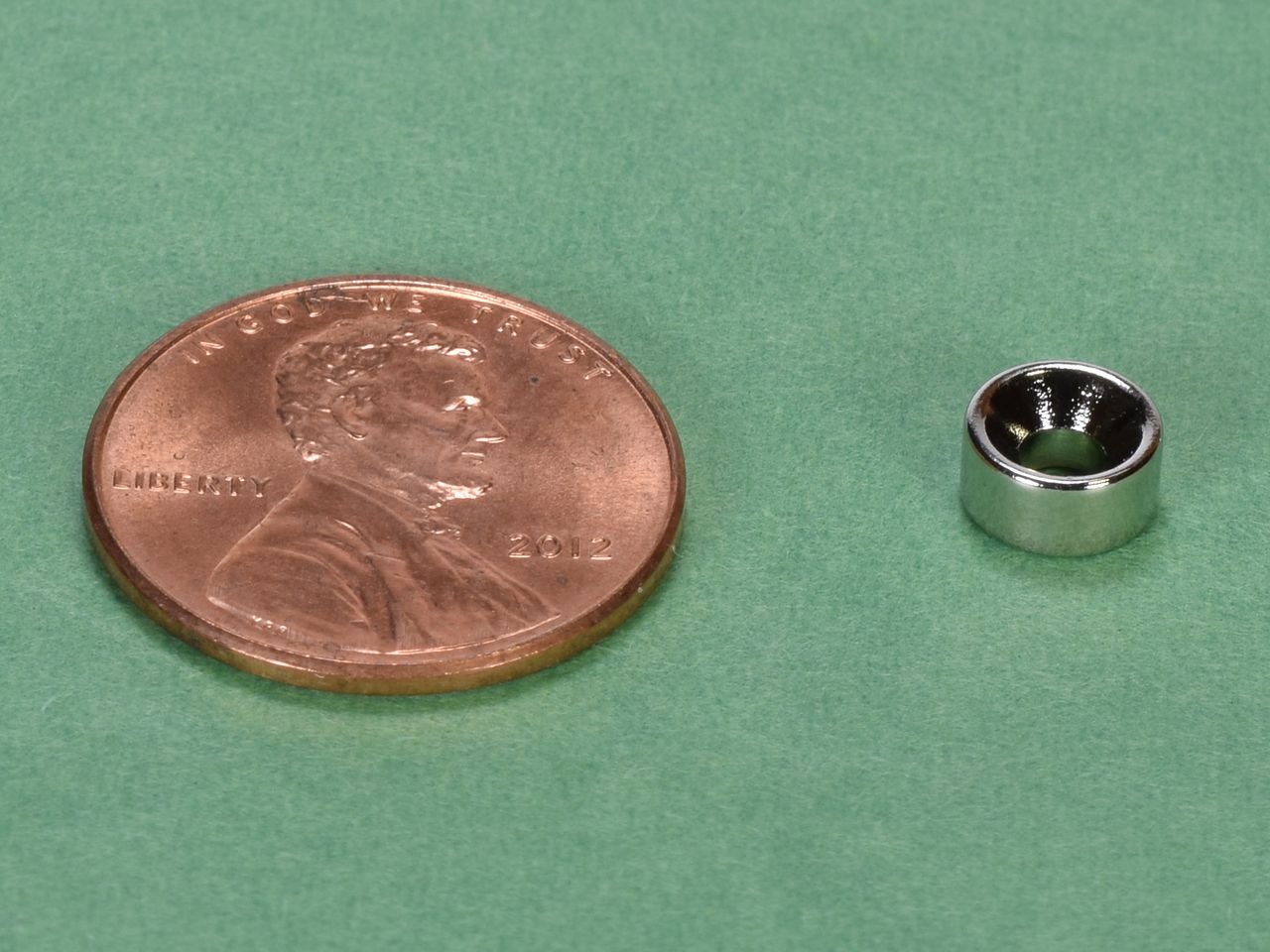

These are small, strong countersunk ring magnets sized specifically for #2 flat-head screws. The south pole is on the side of the magnet with the large hole, where the head of the screw would be.
These small countersunk rings can be used for a wide range of applications and can be great for craft projects. Also available in grade N42, as part number R422CS-S.
 | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
 | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
 | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
 | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
 | View B-H curves for this magnet. |
 | Click this link to download a PDF Specification Sheet. |
 | Click this link to download a PDF drawing of this product. |
 | Click this link to download a Certificate of Compliance for this product. |
 | Click this link to download a RoHS Statement of Compliance for this product. |
 | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
 | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
 | Click this link to download a Certificate of Origin for this product. |
 | Click this link for a REACH compliance statement. |
 | Click this link to download a .STEP file (3D model). |
 | Click this link to download an .IGS file (3D model). |
