BCC4 - Neodymium Block Magnet

$4.32

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$4.32	1-4
$4.22	5-9	2%
$4.13	10-24	4%
$4.03	25-49	7%
$3.94	50-99	9%
$3.84	100-249	11%
$3.75	250-499	13%
$3.65	500-999	16%
$3.56	1000-2499	18%
$3.46	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/4" x 3/4" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.610 oz. (17.29 g)
Pull Force, Case 1: 21.94 lbs
Pull Force, Case 2: 44.36 lbs
Surface Field: 3387 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

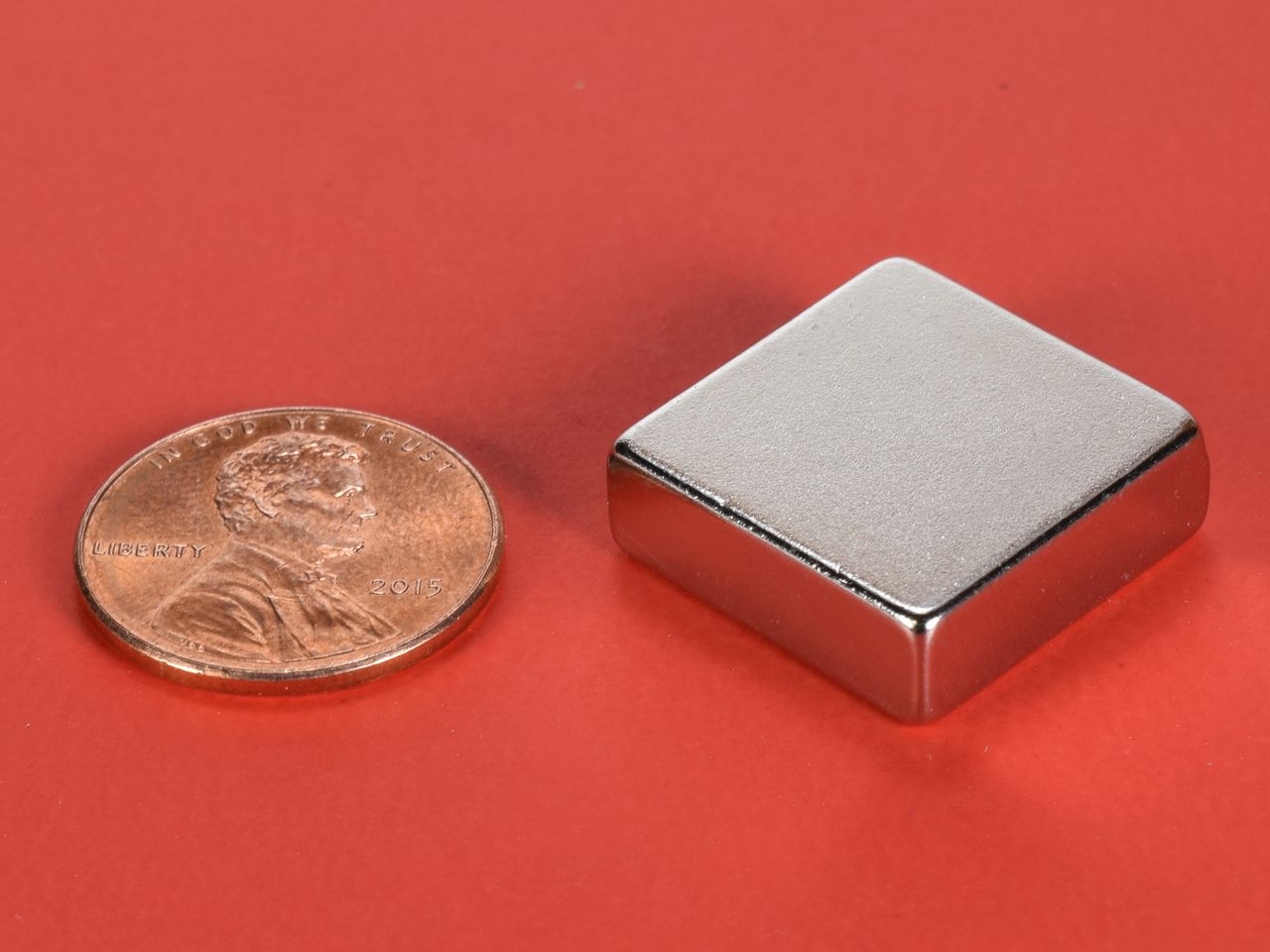

The BCC4 is a strong and sturdy mid-sized block. They are quite powerful for their size and must be handled carefully to avoid getting pinched.

This size is also available with a countersunk hole as part number BCC4DCS.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
