D42DIA - Neodymium Diametric Disc Magnet

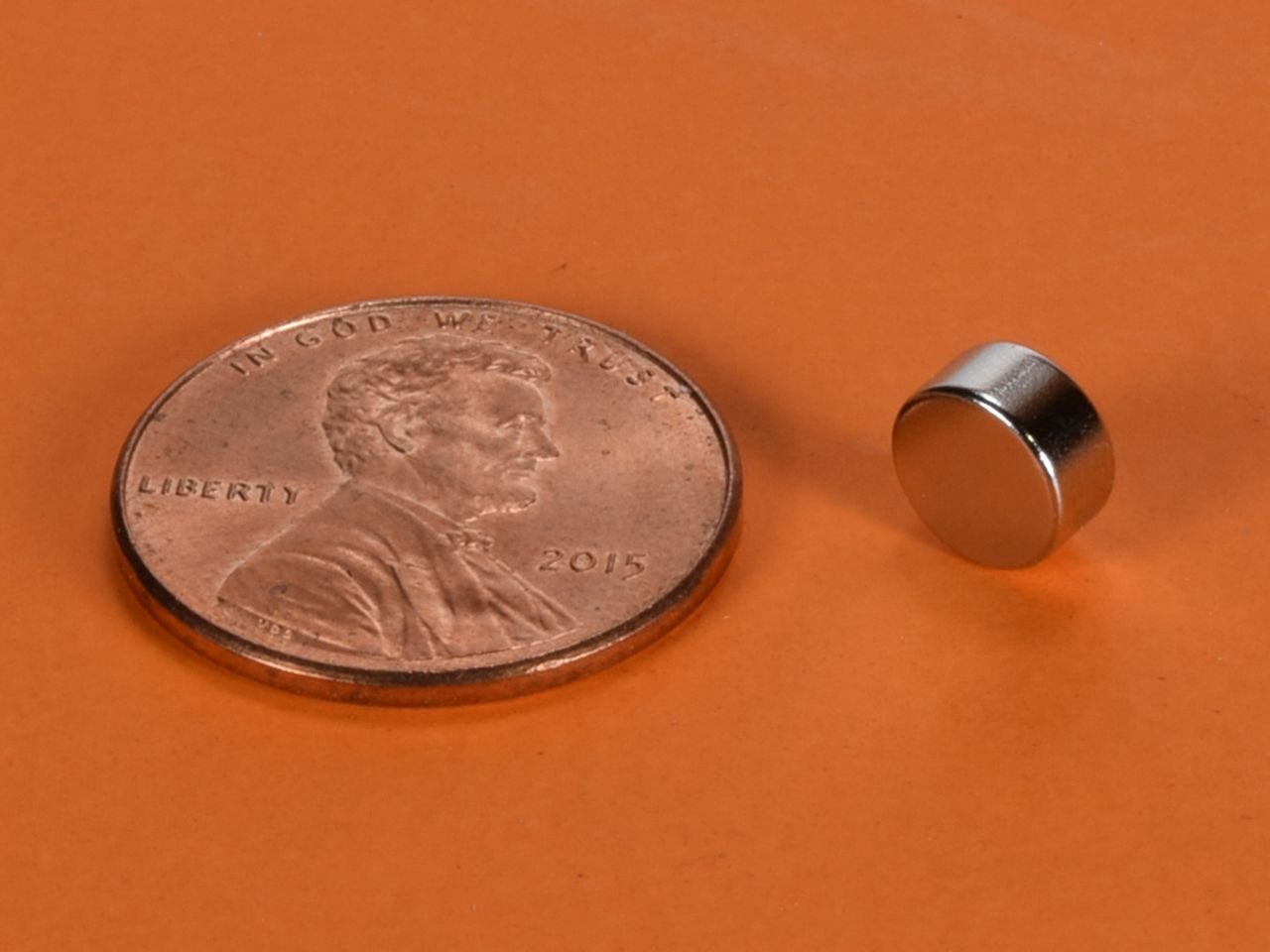

• Dimensions: 1/4" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (nickel)
• Magnetization Direction: Diametrical
• Weight: 0.0266 oz. (0.754 g)
• Pull Force, Case 1: 1.32 lbs
• Pull Force, Case 2: 1.80 lbs
• Surface Field: 6898 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

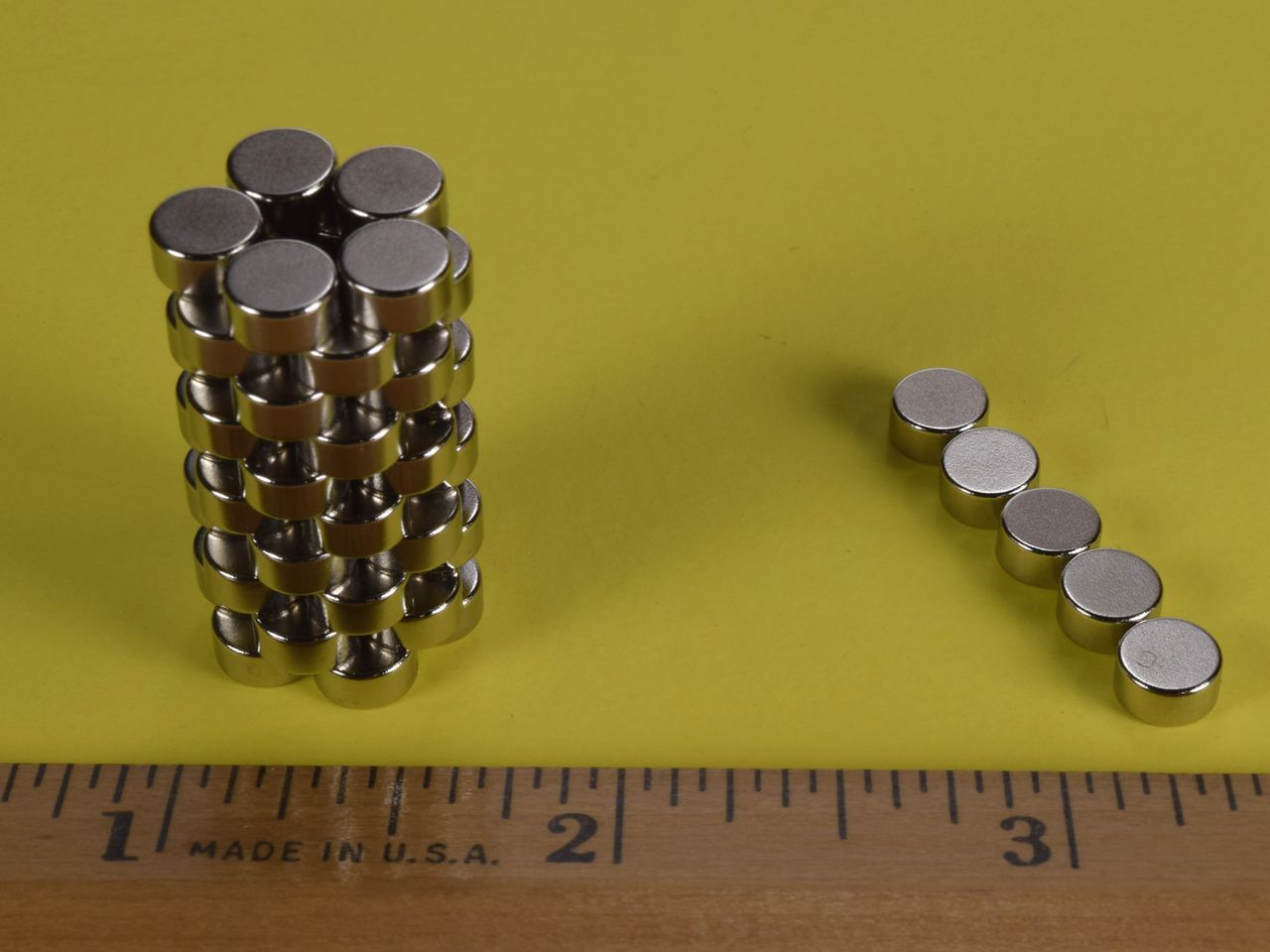

These discs are "diametrically magnetized," which means that the poles are located on opposite sides of the circular shape, not in the center of the circular flat surfaces like most disc magnets. The magnets will tend to want to line up side-to-side rather than stack on their flat surfaces. The unusual magnetization makes them an interesting disc to experiment with.

These discs are often used with Hall Effect switches and sensors.

This size is also available axially magnetized in grade N52 with silver nickel plating as part number D42-N52, in grade N42 with silver nickel plating as part number D42, in grade N42 with black epoxy coating as part number D42E, and in grade N52 with black nickel plating as part number D42B-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
