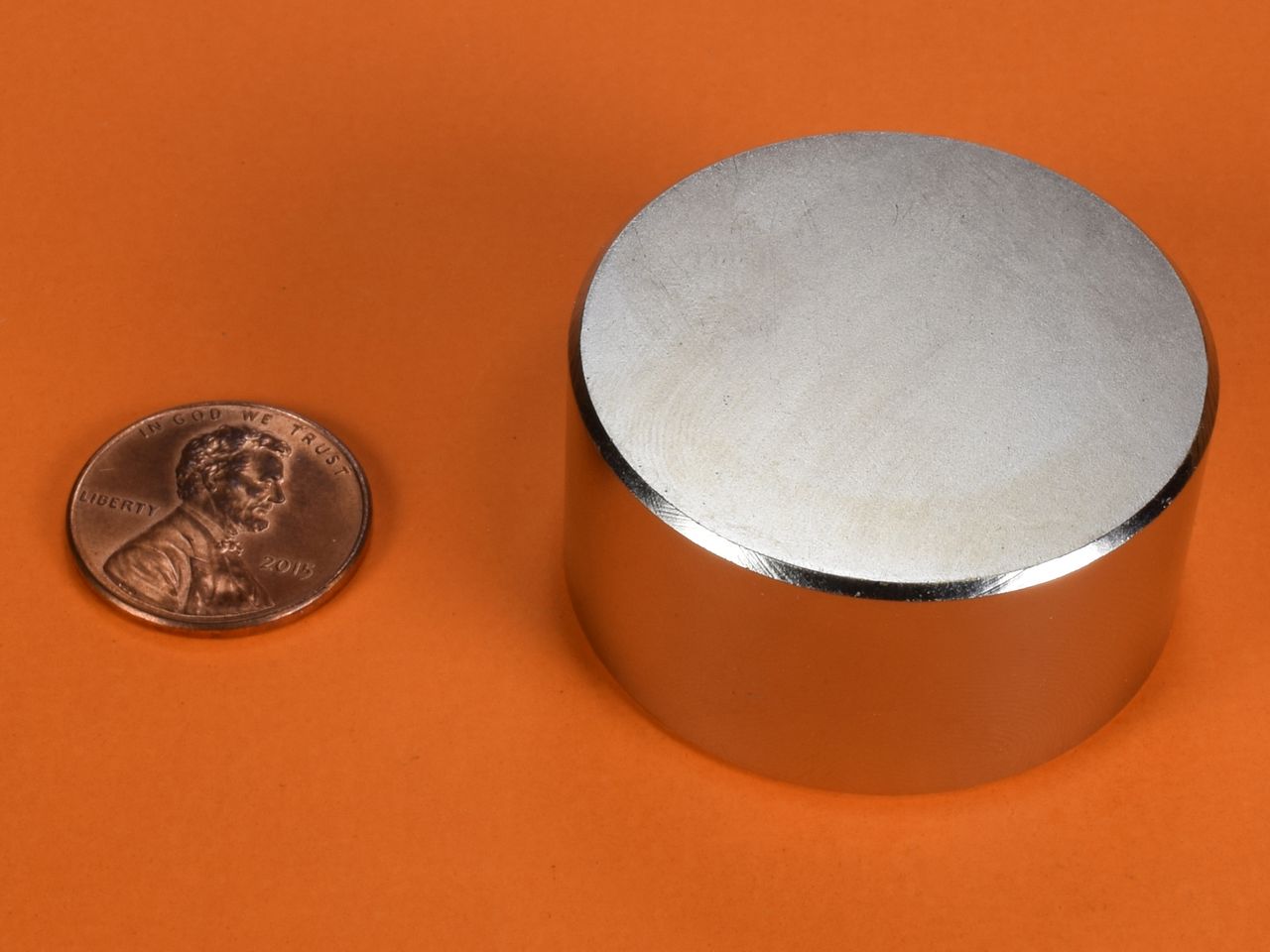

DX8C-N52 - Neodymium Disc Magnet

dx8c-n52-neodymium-disc-magnet--thumbnail-2

$45.38

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$45.38	1
$44.37	2	2%
$43.36	3-4	4%
$42.36	5-6	7%
$41.35	7-9	9%
$40.34	10-24	11%
$39.33	25-49	13%
$38.33	50-99	16%
$37.32	100-249	18%
$36.31	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1 1/2" dia. x 3/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.75 oz. (163 g)
Pull Force, Case 1: 115.3 lbs
Pull Force, Case 2: 149.3 lbs
Surface Field: 5233 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

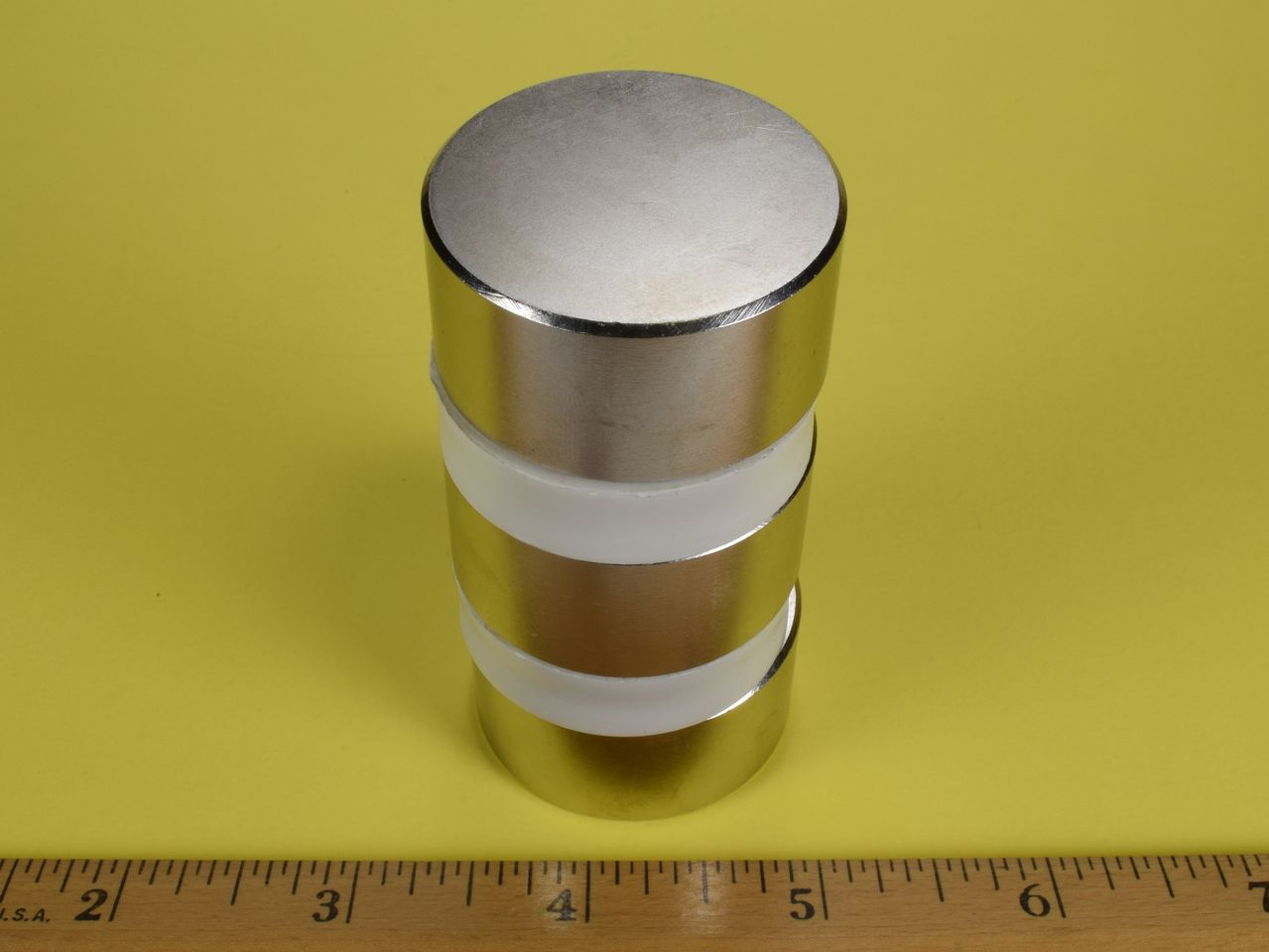

These giant discs are killer strong, especially in grade N52. Only purchase these discs if you are well versed in handling very strong neodymium magnets. Two of these stuck together are virtually impossible to separate by hand. They can pinch very hard and cause physical harm if they are not handled with extreme care and respect. One of these discs has a pull force of over 110 lbs if attached to a steel plate.

This size is also available in grade N42 as part number DX8C.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
